GEARED MOTORS

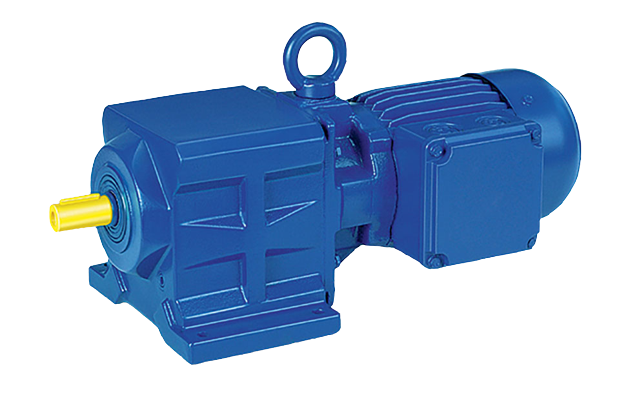

BG Series Helical Geared Motor

BG Series Helical Geared Motor

Our most selling and most economical unit, the BG gear motor, sets new standards for reliability and economy and includes unparalleled standard features. An inverter friendly design provides for easy integration now and a truly future proof solution. Inch or metric dimensioned output shafts are standard providing for easy integration into all your applications. The BG gear motor offers total flexibility in mounting options includes foot, base, face, and flange solutions. The motor terminal box can be mounted in alternative positions rotated in 90° steps around the motor frame providing for unparalleled integration possibilities.
BG gear motors comply with North American and International standards, including NEMA, IEC, CSA, & CE, the BG series allows for worldwide acceptance, a true total solution for our global customers.
Superior protection of IP65 acc. to IEC 529 assures you that the BG series is dust tight and hose proof, and can be used outdoors or in wet and dusty environments without the use of additional enclosures. Full rated output is available at the output shaft of the unit.

FEATURES

- Torque 20 ... 18.500 Nm
- Output Speeds 0,3 ... 450 min-1
- versatile installation possibilities
- Completely enclosed, sealed against dust and water spray
- Lubrication change first after 15000 hrs
- Low noise gearing
- Mains connection 110 ... 690V, 50/60Hz
- Enclosure IP65 (Standard), IP66 (Optional)
- Connection Standard with CAGE CLAMP®

Additional features:
- Connecting with Plug connectors.
- With integrated inverter up to 7,5kW.
- CE-Mark
- CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
- Motors according to EN 60034
- Corrosion category based on DIN ISO 12944-5
- C1, C2, C3, C4, C5-I, C5-M

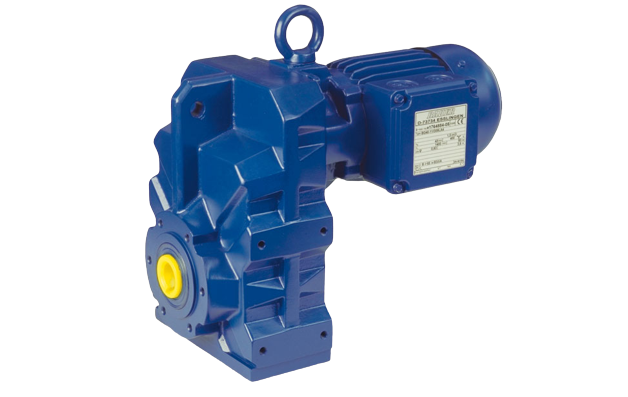

BF Series Shaft Mounted Geared Motor

BF Series Shaft Mounted Geared Motor

Our reliable BF gear motor sets new standards for reliability, efficiency and economy and includes unparalleled standard features including hollow shafts in the smallest sizes. An inverter friendly design provides for easy integration now and a truly future proof solution. The BF gear motor offers total flexibility in mounting options includes shaft, base, face, and flange solutions. The motor terminal box can be mounted in alternative positions rotated in 90° steps around the motor frame providing for unparalleled integration possibilities.
BF gear motors comply with North American and International standards, including NEMA, IEC, CSA, and CE, the BF series allows for worldwide acceptance, a true total solution for our global customers.
Superior protection of IP65 acc. to IEC 529 assures you that the BF series is dust tight and hose proof, and can be used outdoors or in wet and dusty environments without the use of additional enclosures. Full rated output is available at the output shaft of the unit.

FEATURES

- Torque 90 ... 18.500 Nm
- Output Speeds 0,2 ... 190 min-1 versatile installation possibilities
- Completely enclosed, sealed against dust and water spray
- Lubrication change first after 15000 hrs
- Low noise gearing
- Mains connection 110 ... 690V, 50/60Hz
- Enclosure IP65 (Standard), IP66 (Optional)
- Connection Standard with CAGE CLAMP®

Additional features:
- Connecting with Plug connectors.
- With integrated inverter up to 7,5kW.
- CE-Mark
- CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
- Motors according to EN 60034
- Motor power 0.0kW ... 75kW
- Corrosion category based on DIN ISO 12944-5
- C1, C2, C3, C4, C5-I, C5-M

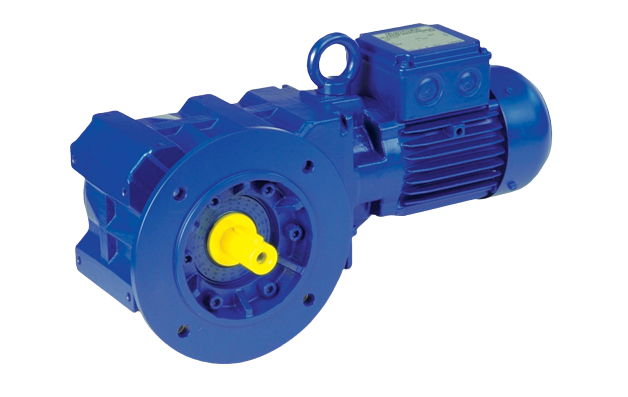

BK Series Bevel Geared Motor

BK Series Bevel Geared Motor

Our reliable BK geared motor sets new standards for reliability, efficiency and economy and includes unparalleled standard features including hollow shafts in the smallest sizes. An inverter friendly design provides for easy integration now and a truly future proof solution. The BK gear motor offers total flexibility in mounting options includes shaft, base, face, and flange solutions. The motor terminal box can be mounted in alternative positions rotated in 90º steps around the motor frame providing for unparalleled integration possibilities.
BK geared motors comply with North American and International standards, including NEMA,IEC,CSA,and CE,the BK series allows for worldwide acceptance, a true total solution for our global customers.
Superior protection of IP65 acc. to IEC 529 assures you that the BK series is dust tight and hose proof,and can be used outdoors or in wet and dusty environments without the use of additional enclosures. Full rated output is available at the output shaft of the unit.

FEATURES

- Torque 80 ... 18.500 Nm
- Output Speeds 0,2 ... 280 min-1
- versatile installation possibilities
- Completely enclosed, sealed against dust and water spray
- Lubrication change first after 15000 hrs
- Low noise gearing
- Mains connection 110 ... 690V, 50/60Hz
- Enclosure IP65 (Standard), IP66 (Optional)
- Connection Standard with CAGE CLAMP®

Additional features:
- Connecting with Plug connectors
- With integrated inverter up to 7,5kW
- CE-Mark
- CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
- Motors according to EN 60034
- Corrosion category based on DIN ISO 12944-5
- C1, C2, C3, C4, C5-I, C5-M

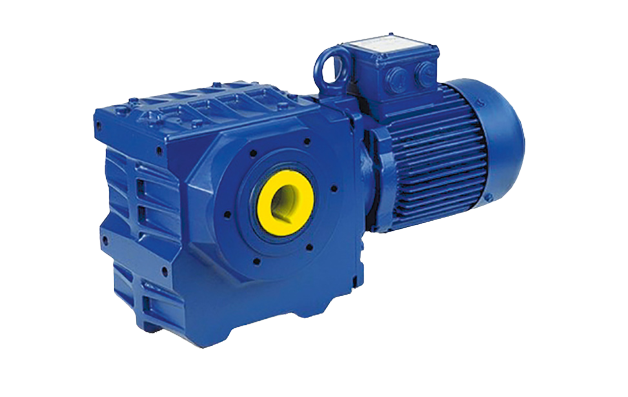

BS Series Worm Geared Motor

BS Series Worm Geared Motor

BS gear motors are economical, right-angle, worm-geared motors that install easily in the tightest applications. Economical right angle worm geared motors set new standards for reliability, efficiency and economy with unparalleled features including hollow shafts in the smallest sizes. An inverter friendly design provides for easy integration now and a truly future proof solution. The BS gear motor offers total flexibility in mounting options includes shaft, base, face, and flange solutions. The motor terminal box can be mounted in alternative positions rotated in 90º steps around the motor frame providing for unparalleled integration possibilities.
BS gear motors comply with North American and International standards, including NEMA, IEC, CSA, and CE, the BS series allows for worldwide acceptance, a true total solution for our global customers.
Superior protection of IP65 acc. to IEC 529 assures you that the BS series is dust tight and hose proof,and can be used outdoors or in wet and dusty environments without the use of additional enclosures. Full rated output is available at the output shaft of the unit.

FEATURES

- Power rating up to 5,5 kW.
- Torque 25 ... 1.000 Nm
- Output Speeds 0,2 ... 300 min-1
- versatile installation possibilities
- Completely enclosed, sealed against dust and water spray
- Lubrication change first after 15000 hrs
- Low noise gearing
- Mains connection 110 ... 690V, 50/60Hz
- Enclosure IP65 (Standard), IP66 (Optional)
- Connection Standard with CAGE CLAMP®

Additional features:
- Connecting with Plug connectors.
- With integrated inverter up to 7,5kW.
- CE-Mark
- CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
- Motors according to EN 60034
- Corrosion category based on DIN ISO 12944-5
- C1, C2, C3, C4, C5-I, C5-M

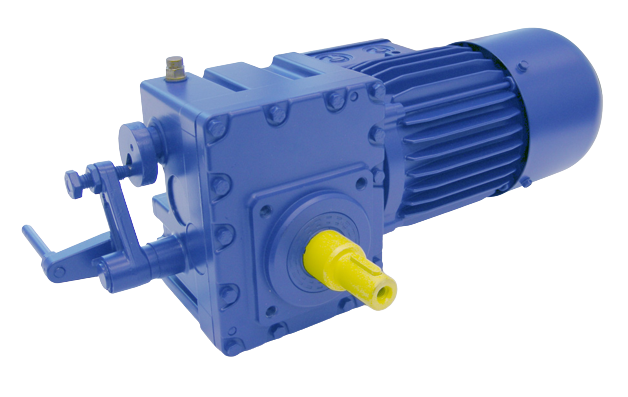

BM Series Monorail Geared Motor

BM Series Monorail Geared Motor

Bauer geared motors have been used in material handling for more than 20 years to drive monorail overhead conveyors. The BM gear motor is an ideal solution for floor conveyors. The clutch lever is always on the "L" side of the gear motor, the side opposite the motor. This enables the gear motor to be designed with an output shaft on both sides, which also allows it to be used as a drive for floor conveyors.
Reliable operation even in hostile environments The drives are supplied with IP65 degree of protection as standard. This is a great advantage for operation in dusty environments.
Low-noise operation The noise emission from two-ratio gear motors is lower than three-ratio motors with the same ratios. The first gear wheel, which is primarily responsible for noise, has a smaller diameter than three-ratio models.
Low operating costs Gear motor size BM09 in the load range to approx. 2000 kg has worm gears for the first ratio and spur wheels for the second ratio. The specially developed worm gears with very low ratios provide very high efficiency, similar to that of bevel gear drives.

FEATURES

- Power rating up to 0,55 kW.
- Torque from 90Nm
- Radial force up to 6.500 N
- versatile installation possibilities
- Completely enclosed, sealed against dust and water spray
- Lubrication change first after 15000 hrs
- Low noise gearing
- Mains connection 110 ... 690V, 50/60Hz
- Enclosure IP65 (Standard), IP66 (Optional)
- Connection Standard with CAGE CLAMP®

Additional features:
- Connecting with Plug connectors.
- CE-Mark
- CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
- Motors according to EN 60034
- Corrosion category based on DIN ISO 12944-5
- C1, C2, C3, C4, C5-I, C5-M
